Iscar

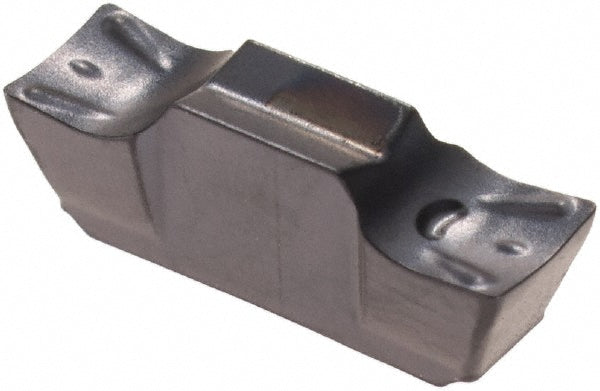

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6403372
MFR# 6403372ISO/ANSI# ISO 13399Series Cut-Grip
$27.40List $35.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6403372 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size3002
Insert size code3002M
Insert styleGEMI
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.0512
Maximum depth of cut range0.0000 to 0.0750
Msc manufacturer numberGEMI 3002M
Multi use toolNo
Overall length0.3950
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
