Iscar

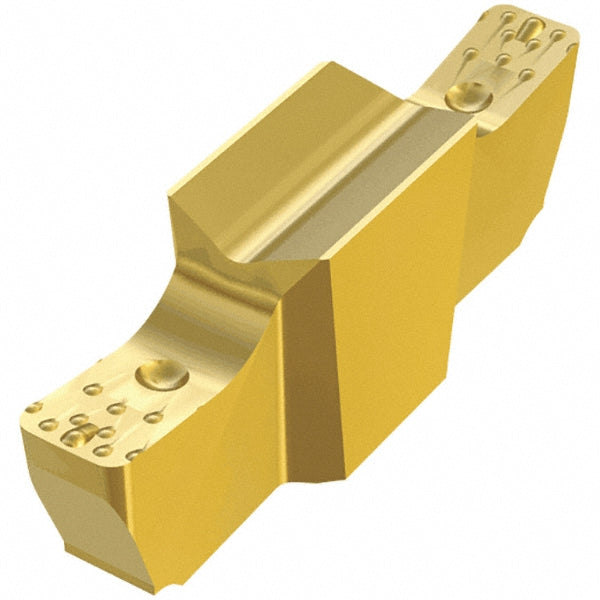

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6403379
MFR# 6403379ISO/ANSI# ISO 13399Series Cut Grip
$27.10List $34.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6403379 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Cutting width0.0472
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size120000
Insert size code120000
Insert styleGEPI
Iso codeISO 13399
Manufacturer gradeIC08
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.3937
Overall width0.0472
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
