Iscar

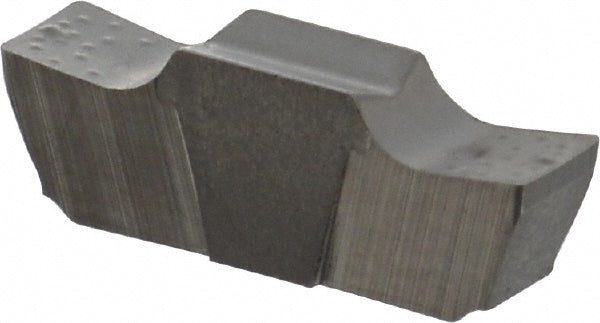

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6403396
MFR# 6403396ISO/ANSI# ISO 13399Series Cut Grip
$23.66List $30.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6403396 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Corner radius0.0059
Cutting width0.0941
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size239015
Insert size code239015
Insert styleGEPI
Iso codeISO 13399
Manufacturer gradeIC08
Maximum depth of cut0.3543
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.3937
Overall width0.0941
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
