Iscar

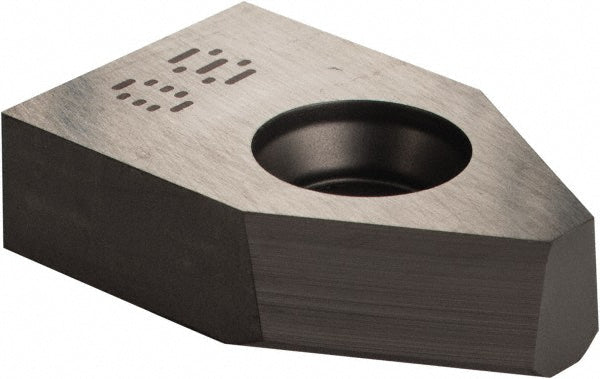

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6403488
MFR# 6403488ISO/ANSI# ISO 13399Series V-Lock
$29.66List $30.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6403488 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Cutting width0.5118
Full radiusNo
Hole diameter0.2165
Included angle degree60
Inscribed circle0.5000
Insert handNeutral
Insert materialSolid Carbide
Insert size130505
Insert size code130505
Insert styleXNUW
Iso codeISO 13399
Manufacturer gradeIC08
Material gradeC1; C2; C6; C7
Multi use toolNo
Overall length0.8110
Overall width0.2106
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
StandardsISO 13399
