Carbide Insert, Grade IC908, TiAlN - Iscar 6403866

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 6403866

MFR# 6403866Series MM TRD-W

$74.33List $95.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
GradeIC908
CoatingTiAlN

Description

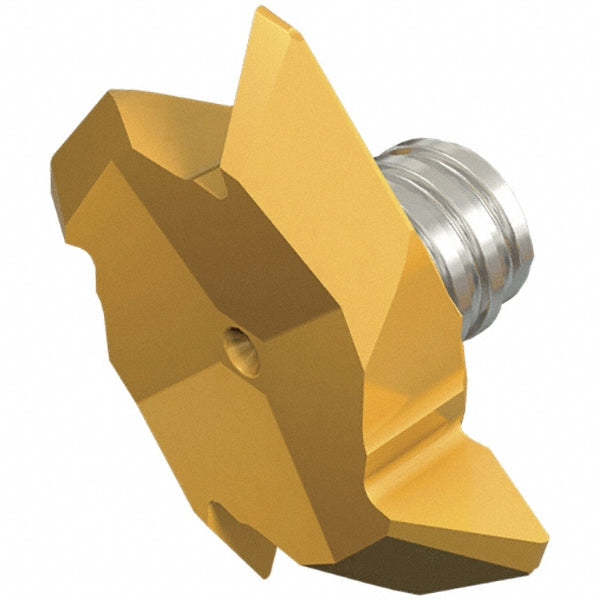

The Iscar 6403866 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0079
Cutting diameter0.8540
Cutting width0.8540in
Included angle degree90
Insert handRight Hand
Insert sizeD22-W55-14P
Lead angle90
Manufacturers catalog number6403866
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM TRD22-W55-14P-4T08
Milling tip styleMM TRD-W
Milling tip typeThread
Number of flutes4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
