Iscar

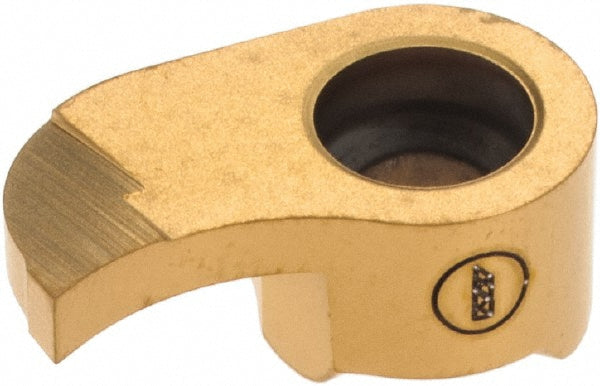

ISO 13399 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6403875
MFR# 6403875ISO/ANSI# ISO 13399Series ChamGroove
$32.87List $42.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6403875 is a ISO 13399 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0040
Cutting width0.7900
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size1115200
Insert size code1115200
Insert styleGIQR
Iso codeISO 13399
Manufacturer gradeIC528
Maximum depth of cut0.0200
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.5750
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
