Iscar

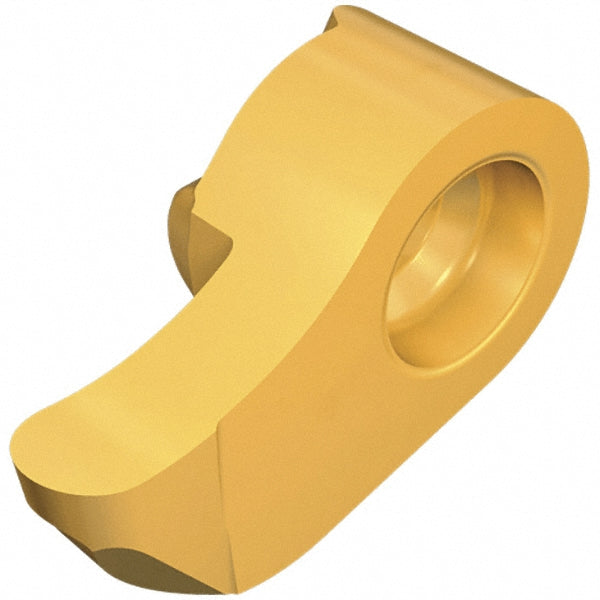

GIQR 11-15-2.00-R100 Solid Carbide Insert, Grade IC528, TiCN - Iscar 6403918
MFR# 6403918ISO/ANSI# GIQR 11-15-2.00-R100Cat# GIQR 11-15-2.00-R100Series ChamGroove
$31.07List $39.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6403918 is a GIQR 11-15-2.00-R100 solid carbide indexable insert, grade IC528, TiCN coated. Suited for superalloy, titanium.
Specifications
Coating finishTiCN
Coating processPVD
Corner radius0.0390
Cutting width0.0790
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size1115200
Insert size code1115200R100
Insert styleGIQR
Iso codeGIQR 11-15-2.00-R100
Manufacturers catalog numberGIQR 11-15-2.00-R100
Manufacturer gradeIC528
Material gradeSubmicron
Maximum depth of cut0.2480
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length0.5750
Primary workpiece materialSuperalloy; Titanium
Single or double endSingle
StandardsISO 13399
