Iscar

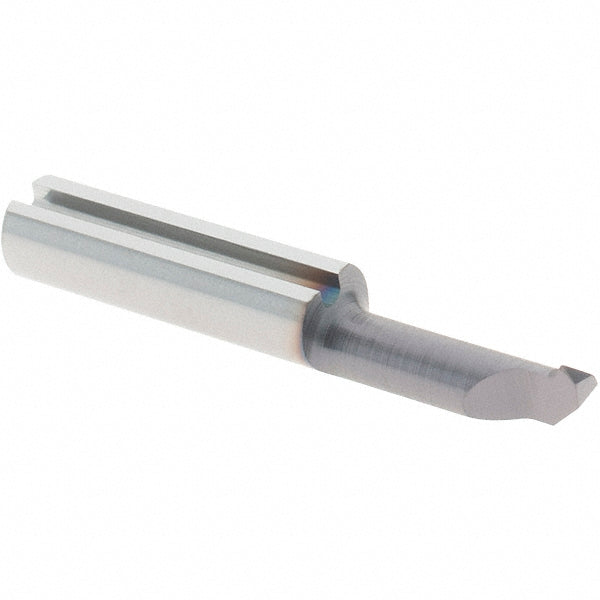

Single Point Threading Tools - Iscar 6403940
MFR# 6403940
$56.53List $72.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Iscar 6403940 single point threading tools.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting depth0.3937
Flat width0.0020
MaterialSolid Carbide
Maximum pitch (mm)0.75
Maximum threads per inch48
Minimum pitch (mm)0.50
Minimum threads per inch36
Overall length0.9450
Profile angle60
Projection from center0.0394
Projection from edge0.0200
Shank diameter (mm)4.00
Threading diameter0.1260
Thread directionRight Hand
Thread typeInternal
