Iscar

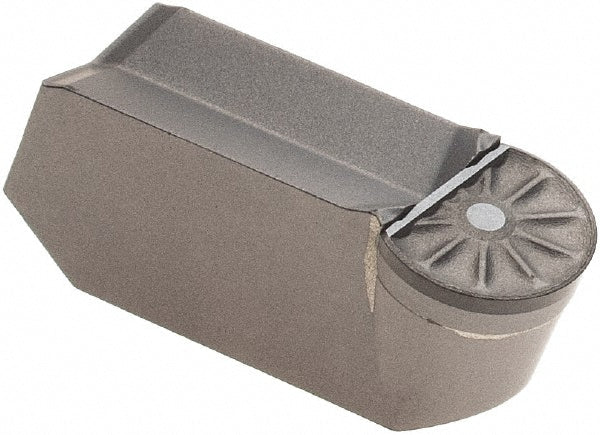

ISO 13399 Polycrystalline Diamond Insert, Grade ID5 - Iscar 6404002
MFR# 6404002ISO/ANSI# ISO 13399Series Cut Grip
$222.66List $280.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeID5
MaterialPolycrystalline Diamond
Description
The Iscar 6404002 is a ISO 13399 polycrystalline diamond indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Chip breakerYZ
Corner radius0.1180
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialPolycrystalline Diamond
Insert size600300
Insert size code600300YZD
Insert styleGIPA
Iso codeISO 13399
Manufacturer gradeID5
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.5906
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
