Iscar
ISO 13399 Solid Carbide Insert, Grade IC808, TiAlN - Iscar 6404052
MFR# 6404052ISO/ANSI# ISO 13399Series Sumo-Grip
$26.51List $34.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description

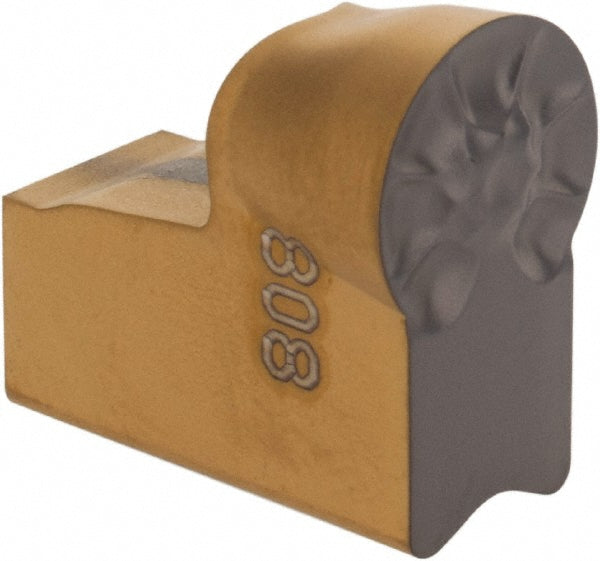

The Iscar 6404052 is a ISO 13399 solid carbide indexable insert, grade IC808, TiAlN coated.
Specifications
Chip breakerB
Clearance codeA
Coating finishTiAlN
Coating processPVD
Corner radius0.1575
Included angle60.0
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeIrregular
Insert size code840
Insert styleTAGB
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.1575
RakePositive
StandardsISO 13399
Tolerance codeG
