Iscar

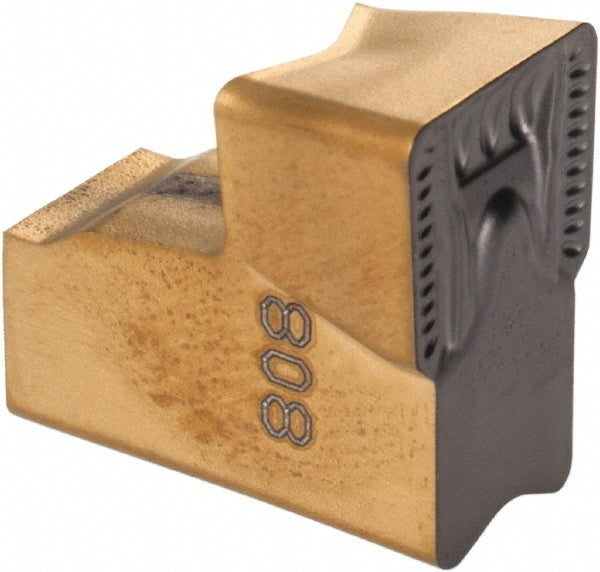

ISO 13399 Solid Carbide Insert, Grade IC808, TiN - Iscar 6404053
MFR# 6404053ISO/ANSI# ISO 13399Cat# TAGB 808YSeries Sumo-Grip
$24.95List $32.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6404053 is a ISO 13399 solid carbide indexable insert, grade IC808, TiN coated. Suited for universal.
Specifications
ChipbreakerY
Coating finishTiN
Coating processPVD
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.3150
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code808
Insert styleTAGB
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberTAGB 808Y
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.2200
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
