Iscar

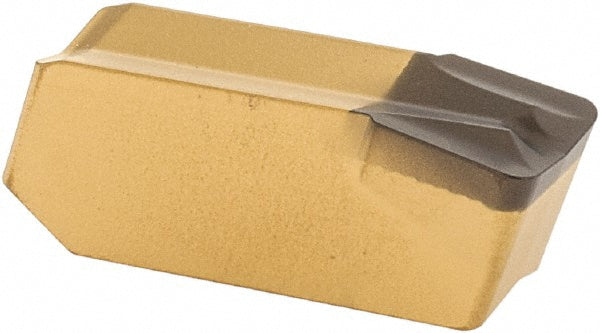

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404065
MFR# 6404065ISO/ANSI# ISO 13399Series Cut Grip
$21.79List $27.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6404065 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processPVD
Corner radius0.0315
Cutting width0.1970
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size508
Insert size code508
Insert styleGIMF
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIMF 508
Multi use toolYes
Overall length0.5940
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
