Iscar

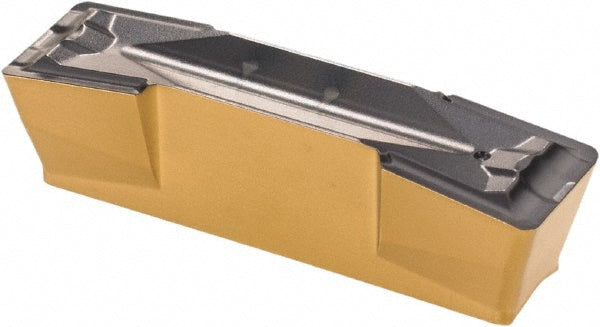

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404093
MFR# 6404093ISO/ANSI# ISO 13399Series Cut Grip
$44.42List $55.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404093 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting height0.2520
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGDMN
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC808
Maximum depth of cut1.0630
Maximum depth of cut range1.0000+
Msc manufacturer numberGDMN 808
Multi use toolYes
Overall length1.1811
Primary workpiece materialUniversal
RakePositive
Rake angle0.00
Single or double endDouble
StandardsISO 13399
