Iscar

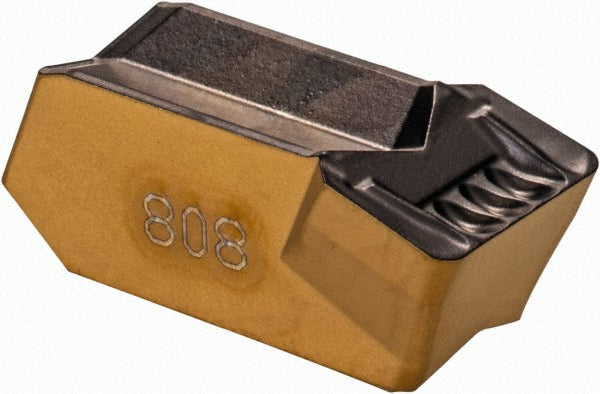

GIMY 808 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404097
MFR# 6404097ISO/ANSI# GIMY 808Cat# GIMY 808Series Cut Grip
$24.52List $31.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404097 is a GIMY 808 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting height0.1969
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGIMY
Iso codeGIMY 808
Manufacturers catalog numberGIMY 808
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.1890
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
