Iscar

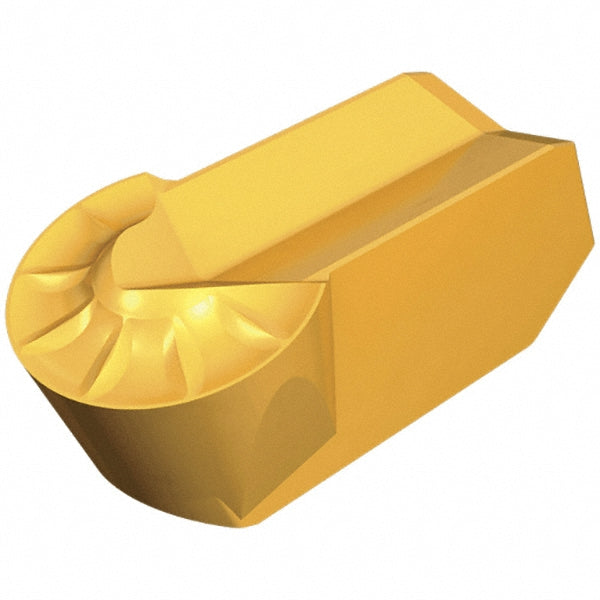

GIMY 315 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404101
MFR# 6404101ISO/ANSI# GIMY 315Cat# GIMY 315Series Cut Grip
$18.03List $23.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404101 is a GIMY 315 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerFY
Coating finishAlTiN
Coating processPVD
Corner radius0.0591
Cutting height0.1969
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size315
Insert size code315
Insert styleGIMY
Iso codeGIMY 315
Manufacturers catalog numberGIMY 315
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
