Iscar

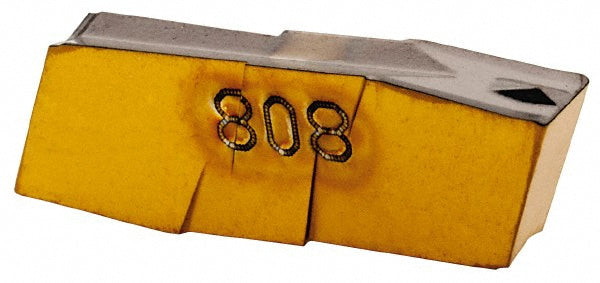

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404111
MFR# 6404111ISO/ANSI# ISO 13399Series Cut-Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404111 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting width0.1252
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size318020
Insert size code318020
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeP15 to P30
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Msc manufacturer numberGIP 3.18-0.20
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
