Iscar

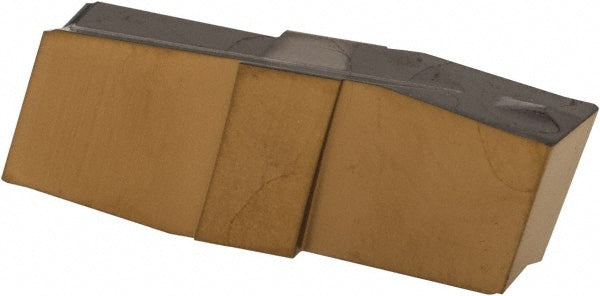

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404113
MFR# 6404113ISO/ANSI# ISO 13399Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404113 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0039
Cutting width0.1063
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size270010
Insert size code270010
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Msc manufacturer numberGIP 2.70-0.10
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
