Iscar

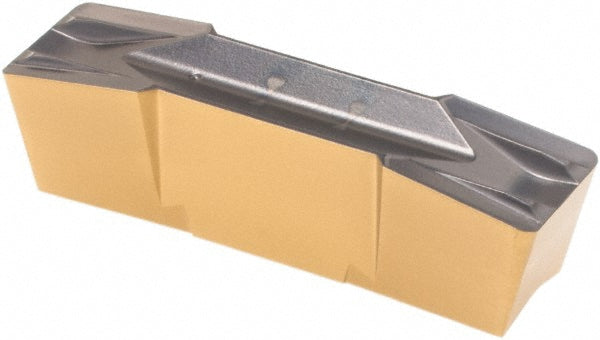

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404117
MFR# 6404117ISO/ANSI# ISO 13399Series Cut Grip
$52.94List $67.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404117 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size800E080
Insert size code800E080
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut1.0630
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length1.1811
Overall width0.3150
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
