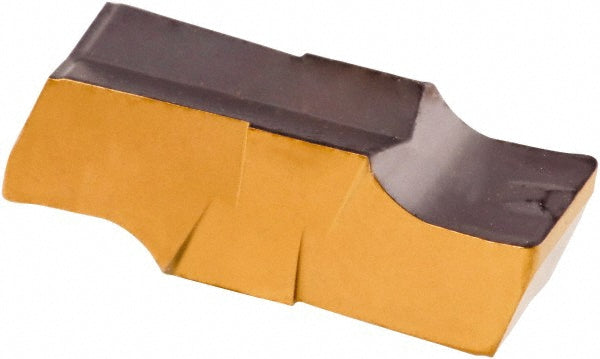

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404118
MFR# 6404118ISO/ANSI# ISO 13399Series Cut Grip
$38.65List $49.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404118 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting height0.1970
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size400E040
Insert size code400E040
Insert styleGIPI
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.6102
Maximum depth of cut range0.3000 to 1.0000
Msc manufacturer numberGIPI 4.00E-0.40
Multi use toolYes
Overall length0.6180
Overall width0.1575
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
