Iscar

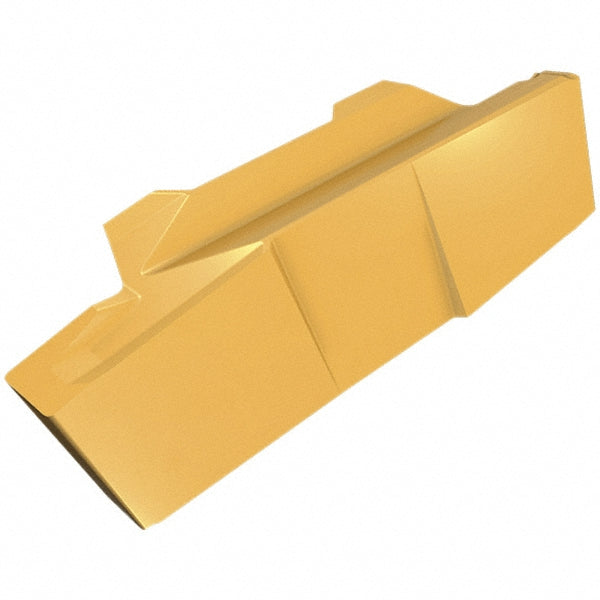

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404139
MFR# 6404139ISO/ANSI# ISO 13399Series Cut Grip
$38.50List $49.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404139 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerX
Coating finishAlTiN
Coating processPVD
Corner radius0.0040
Cutting width0.0470
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size11901
Insert size code11901
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length (mm)15.30
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
