Iscar

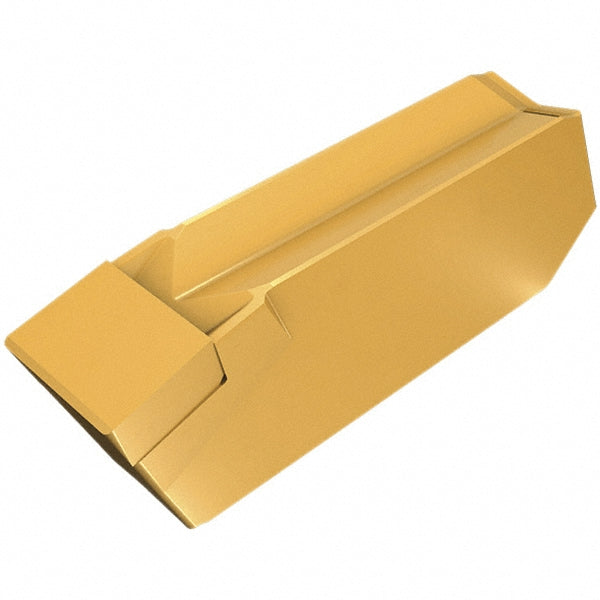

ISO 13399 CBN Insert, Grade IB20H - Iscar 6404168
MFR# 6404168ISO/ANSI# ISO 13399Series Cut Grip
$159.80List $201.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIB20H
MaterialCBN
Description
The Iscar 6404168 is a ISO 13399 cbn indexable insert, grade IB20H. Suited for hard material.
Specifications
Chip breakerK
Corner radius0.0080
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCBN
Insert size400K020
Insert size code400K020
Insert styleGITM
Iso codeISO 13399
Lead angle30
Manufacturer gradeIB20H
Maximum depth of cut0.0157
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.5906
Primary workpiece materialHard Material
RakePositive
Rake angle7
StandardsISO 13399
