Iscar

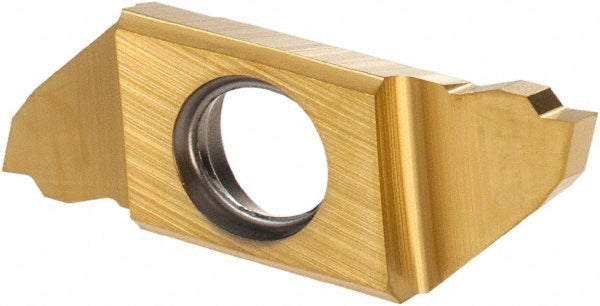

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6404230
MFR# 6404230ISO/ANSI# ISO 13399Series Swisscut
$45.53List $58.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6404230 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Cutting width0.0590
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size22150
Insert size code22150N00
Insert styleSCIR
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC1008
Maximum depth of cut0.2170
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length0.8660
Overall width0.1180
Primary workpiece materialUniversal
RakePositive
Rake angle0.00
StandardsISO 13399
