Iscar

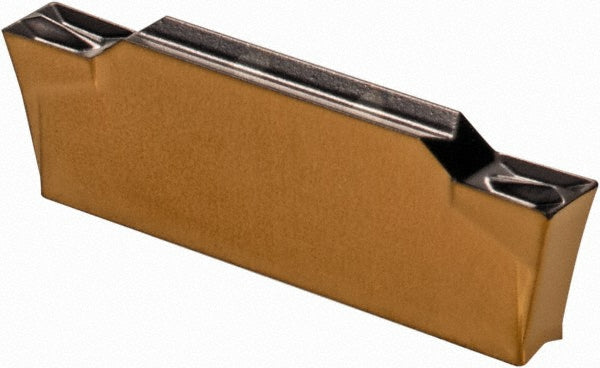

GDMW 2.4 Solid Carbide Insert, Grade IC254, TiN - Iscar 6404238
MFR# 6404238ISO/ANSI# GDMW 2.4Cat# GDMW 2.4Series Cut Grip
$25.61List $32.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC254
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6404238 is a GDMW 2.4 solid carbide indexable insert, grade IC254, TiN coated.
Specifications
Chip breakerW
Coating finishTiN
Coating processPVD
Corner radius0.0071
Cutting height0.2165
Cutting width0.0945
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size24
Insert size code24
Insert styleGDMW
Iso codeGDMW 2.4
Manufacturers catalog numberGDMW 2.4
Manufacturer gradeIC254
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.7874
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
