Iscar

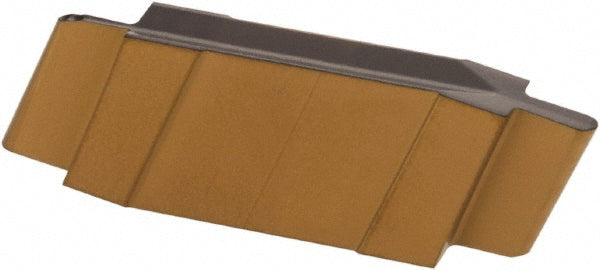

ISO 13399 Carbide Insert, Grade IC808, AlTiN - Iscar 6404241
MFR# 6404241ISO/ANSI# ISO 13399Series Cut-Grip
$38.62List $48.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6404241 is a ISO 13399 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutting width0.0394in
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size100050
Insert size code100050
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberGIP 1.00-0.50
Multi use toolNo
Overall length0.6024in
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
StandardsISO 13399
