Iscar

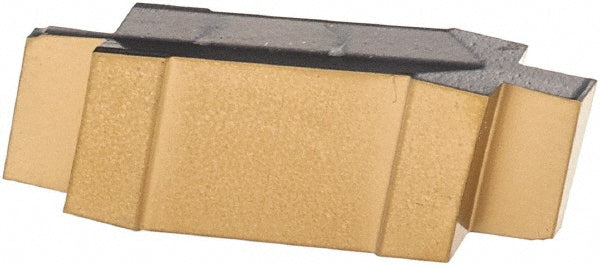

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404246
MFR# 6404246ISO/ANSI# ISO 13399Series Cut Grip
$37.19List $46.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404246 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Cutting width0.0409
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size104000
Insert size code104000
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length0.6024
Overall width0.0409
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
