Iscar

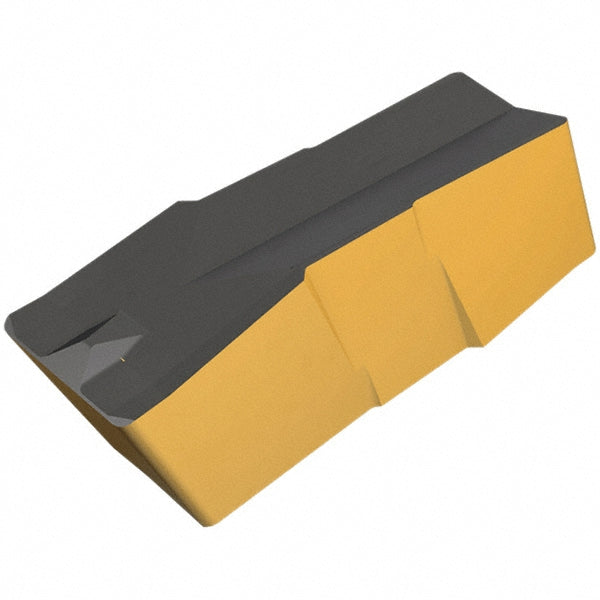

ISO 13399 Carbide Insert, Grade IC808, AlTiN - Iscar 6404263
MFR# 6404263ISO/ANSI# ISO 13399Series Cut Grip
$38.65List $49.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6404263 is a ISO 13399 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerE
Coating finishAlTiN
Coating processPVD
Corner radius0.0236
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size400060
Insert size code400E060
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
