Iscar

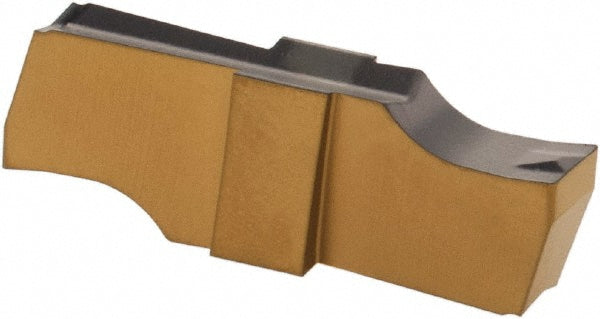

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404265
MFR# 6404265ISO/ANSI# ISO 13399Series Cut Grip
$36.54List $46.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404265 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0059
Cutting width0.0941
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size239015
Insert size code239015
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.2520
Maximum depth of cut range0.2000 to 0.3000
Msc manufacturer numberGIPI 2.39-0.15
Multi use toolYes
Overall length0.6180
Primary workpiece materialUniversal
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
