Iscar

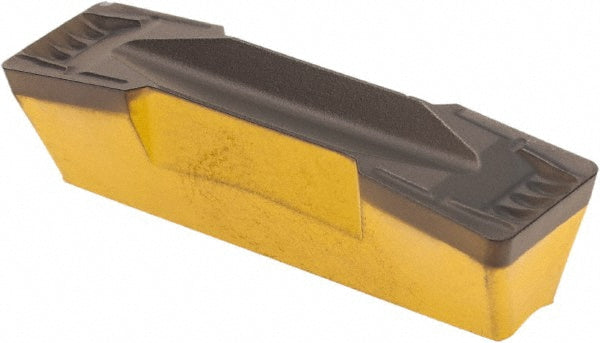

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404274
MFR# 6404274ISO/ANSI# ISO 13399Series Cut Grip
$47.55List $60.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6404274 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processCVD
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Gage diameter1.9685
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGDMY
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut1.0630
Maximum depth of cut range1.0000+
Multi use toolYes
Overall length1.1811
Overall width0.3150
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
