Iscar

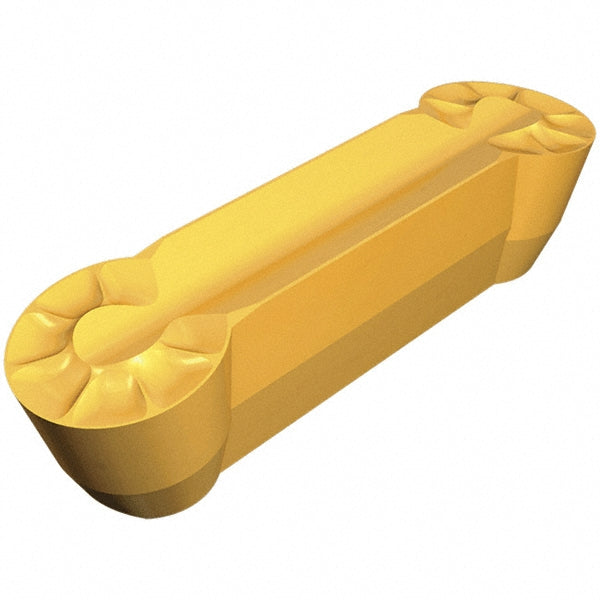

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404275
MFR# 6404275ISO/ANSI# ISO 13399Series Cut Grip
$49.51List $63.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6404275 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerY
Coating finishAl2O3
Coating processPVD
Corner radius0.1570
Cutting width0.3150
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size840
Insert size code840
Insert styleGDMY
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1570
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length1.1800
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
