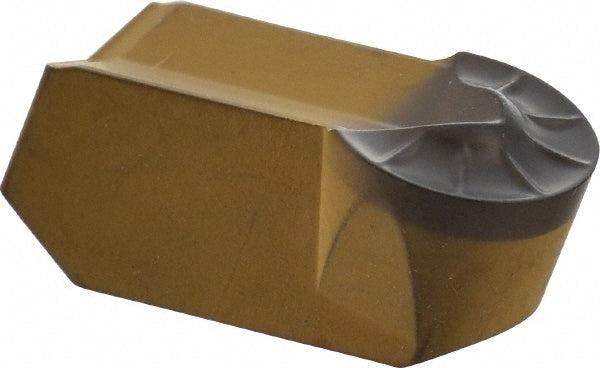

ISO 13399 Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404278
MFR# 6404278ISO/ANSI# ISO 13399Series Cut Grip
$27.88List $35.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6404278 is a ISO 13399 carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerFY
Coating finishAl2O3
Coating processCVD
Corner radius0.1575
Cutting width0.315
Full radiusYes
Gage diameter6.2992
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size840
Insert size code840
Insert styleGIMY
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.6024
Overall width0.315
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
