Iscar

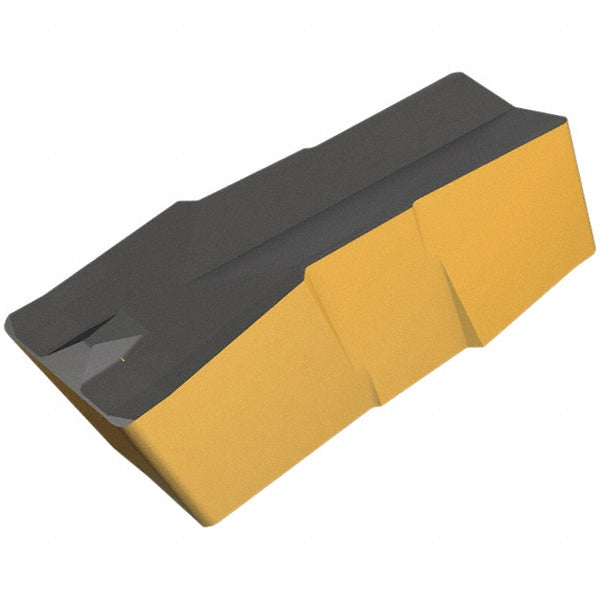

ISO 13399 Solid Carbide Insert, Grade IC5010, Al2O3 - Iscar 6404299
MFR# 6404299ISO/ANSI# ISO 13399Series Cut Grip
$42.08List $53.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC5010
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6404299 is a ISO 13399 solid carbide indexable insert, grade IC5010, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processCVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size400E040
Insert size code400E040
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC5010
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6024
Overall width0.1575
Primary workpiece materialCast Iron
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
