Iscar

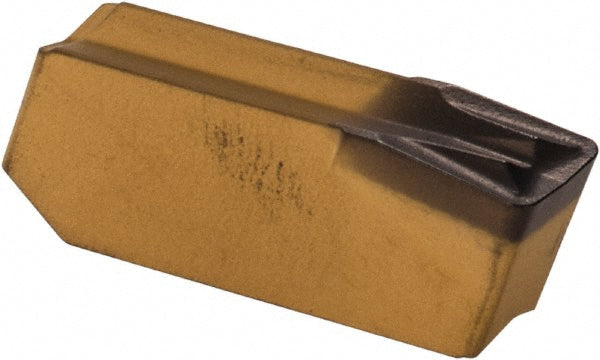

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404310
MFR# 6404310ISO/ANSI# ISO 13399Series Cut Grip
$19.52List $25.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6404310 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processPVD
Corner radius0.0236
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size406
Insert size code406
Insert styleGIMF
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberGIMF 406
Multi use toolYes
Overall length0.5940
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
