Iscar

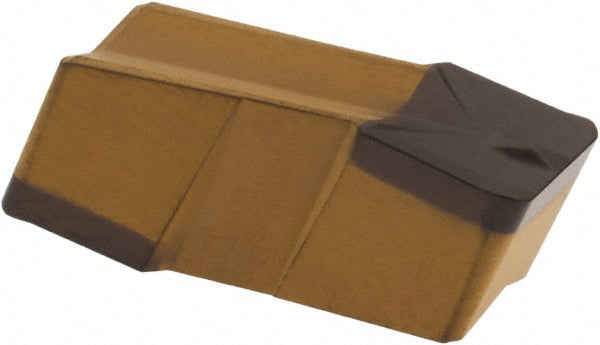

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404319
MFR# 6404319ISO/ANSI# ISO 13399Series Cut-Grip
$52.94List $67.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6404319 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerE
Coating finishAl2O3
Coating processCVD
Corner radius0.0315
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size635080
Insert size code635E080
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1496
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.6020
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
