Iscar

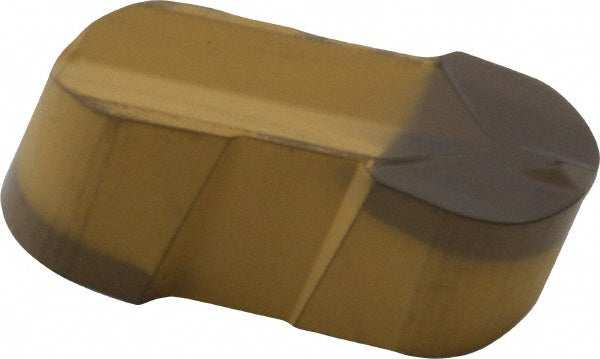

GIP 6.35E-3.18 Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404320
MFR# 6404320ISO/ANSI# GIP 6.35E-3.18Cat# GIP 6.35E-3.18Series Cut Grip
$54.90List $70.30
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6404320 is a GIP 6.35E-3.18 carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processCVD
Corner radius in1/8
Cutting height0.1970
Cutting width0.2500in
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size635E318
Insert size code635E318
Insert styleGIP
Iso codeGIP 6.35E-3.18
Manufacturers catalog numberGIP 6.35E-3.18
Manufacturer gradeIC8250
Maximum depth of cut0.4190
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6020in
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
StandardsISO 13399
