Iscar

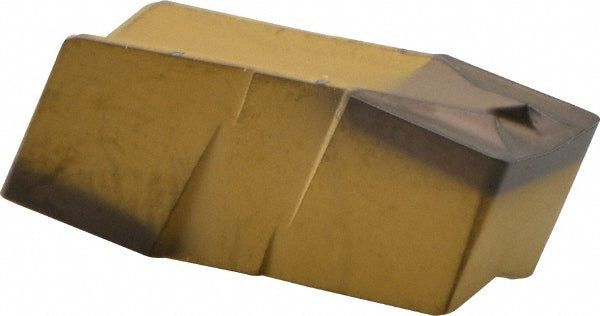

ISO 13399 Carbide Insert, Grade IC8250, Al2O3 - Iscar 6404323
MFR# 6404323ISO/ANSI# ISO 13399Series Cut Grip
$52.94List $67.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6404323 is a ISO 13399 carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processCVD
Corner radius0.0157
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size600E040
Insert size code600E040
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Multi use toolYes
Overall length0.6024
Overall width0.2362
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
