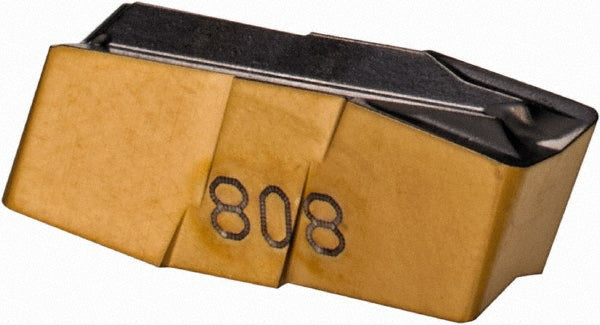

GIF 4.78-0.55 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404345
MFR# 6404345ISO/ANSI# GIF 4.78-0.55Cat# GIF 4.78-0.55Series Cut Grip
$43.18List $55.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404345 is a GIF 4.78-0.55 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0220
Cutting height0.1970
Cutting width0.1880
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size478055
Insert size code478055
Insert styleGIF
Iso codeGIF 4.78-0.55
Manufacturers catalog numberGIF 4.78-0.55
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Multi use toolNo
Overall length0.6020
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
