Iscar

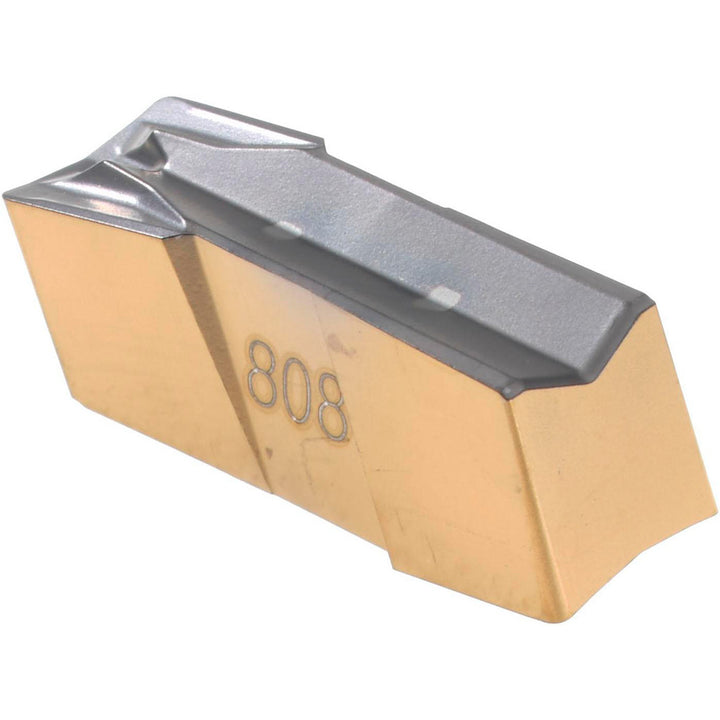

GIF 6.35-0.50 Carbide Insert, Grade IC808, AlTiN - Iscar 6404352
MFR# 6404352ISO/ANSI# GIF 6.35-0.50Cat# GIF 6.35-0.50Series Cut Grip
$48.25List $61.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6404352 is a GIF 6.35-0.50 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0200
Cutting height0.1970
Cutting width0.25
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size635050
Insert size code635050
Insert styleGIF
Iso codeGIF 6.35-0.50
Manufacturers catalog numberGIF 6.35-0.50
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Multi use toolNo
Overall length0.602
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
