Iscar
ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404353
MFR# 6404353ISO/ANSI# ISO 13399Series Cut Grip
$48.25List $61.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description

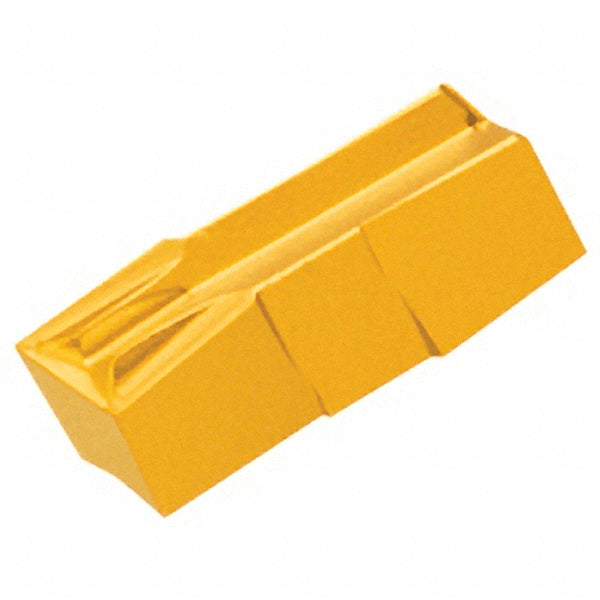

The Iscar 6404353 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0217
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size635055
Insert size code635055
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Multi use toolNo
Overall length0.6024
Overall width0.2500
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
