Iscar

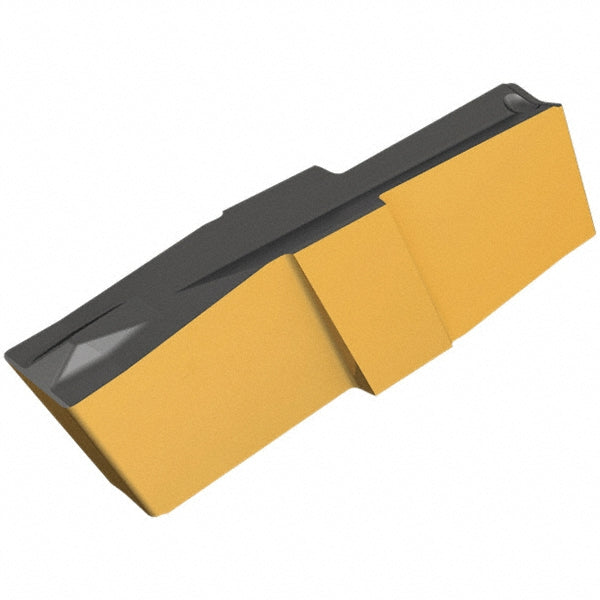

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 6404372
MFR# 6404372ISO/ANSI# ISO 13399Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6404372 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting width0.118
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size300020
Insert size code300020
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Multi use toolNo
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7
StandardsISO 13399
