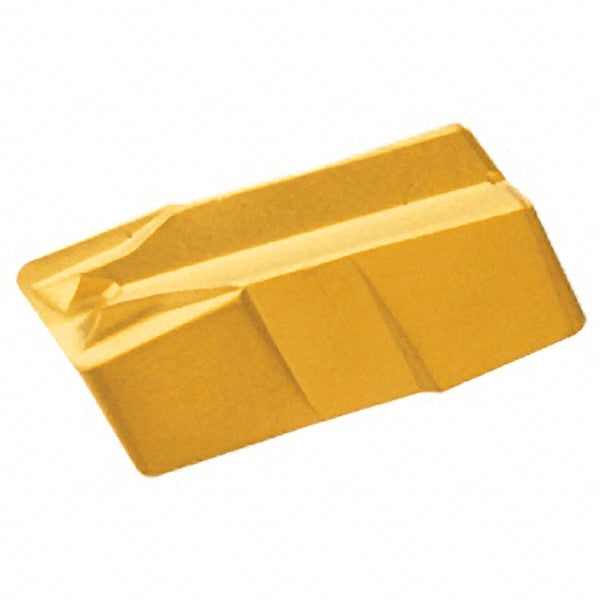

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 6404390
MFR# 6404390ISO/ANSI# ISO 13399Series Cut Grip
$38.65List $49.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6404390 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size400E040
Insert size code400E040
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6024
Overall width0.1575
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
