Iscar

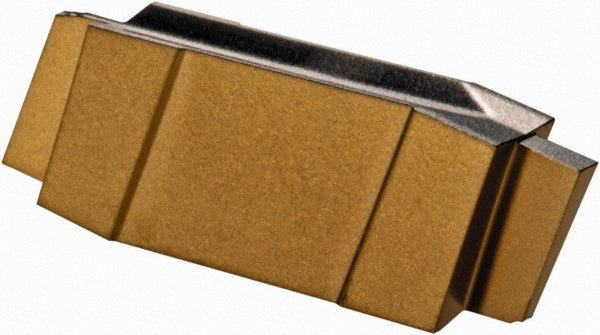

GIP 0.80-0.00 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404397
MFR# 6404397ISO/ANSI# GIP 0.80-0.00Cat# GIP 0.80-0.00Series Cut Grip
$39.44List $50.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404397 is a GIP 0.80-0.00 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Cutting height0.1970
Cutting width0.0310
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size080000
Insert size code080000
Insert styleGIP
Iso codeGIP 0.80-0.00
Manufacturers catalog numberGIP 0.80-0.00
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0630
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.6020
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
