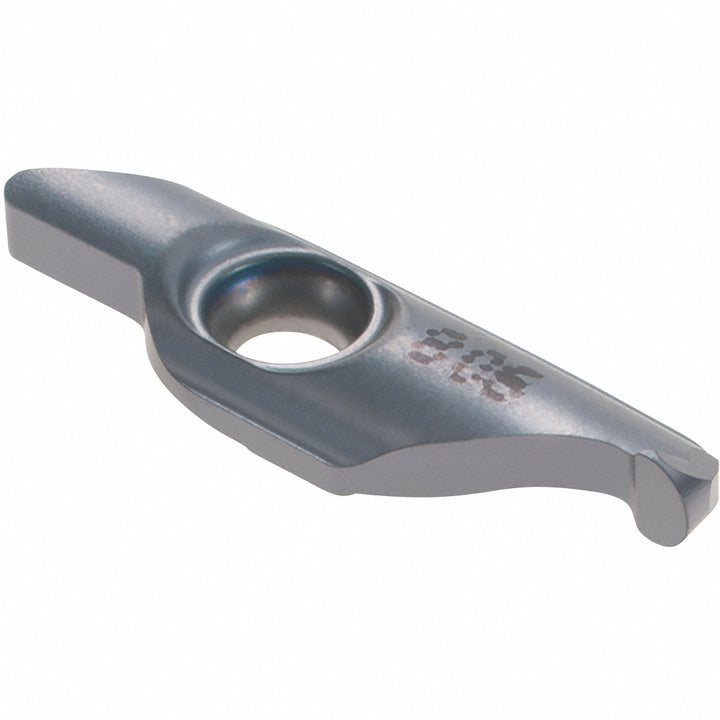

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6404408
MFR# 6404408ISO/ANSI# ISO 13399Series Min-Cut
$48.57List $62.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6404408 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size10300150
Insert size code10300150
Insert styleMIFR
Iso codeISO 13399
Manufacturer gradeIC908
Maximum depth of cut0.3543
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.9882
Primary workpiece materialUniversal
Single or double endSingle
StandardsISO 13399
