Iscar

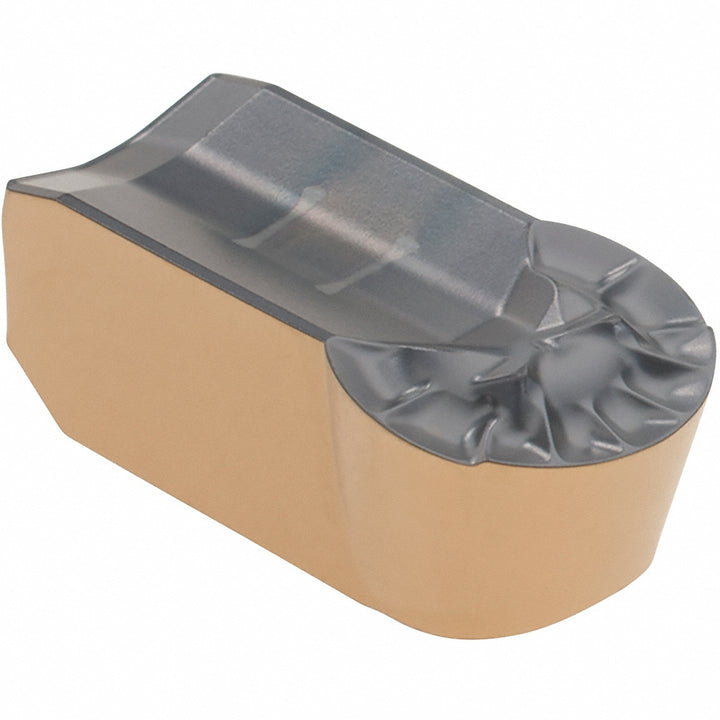

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404553
MFR# 6404553ISO/ANSI# ISO 13399Series Cut Grip
$38.80List $49.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404553 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.2362
Cutting width0.4724
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size1260
Insert size code1260
Insert styleGIMY
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.2362
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length0.9450
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
