Iscar

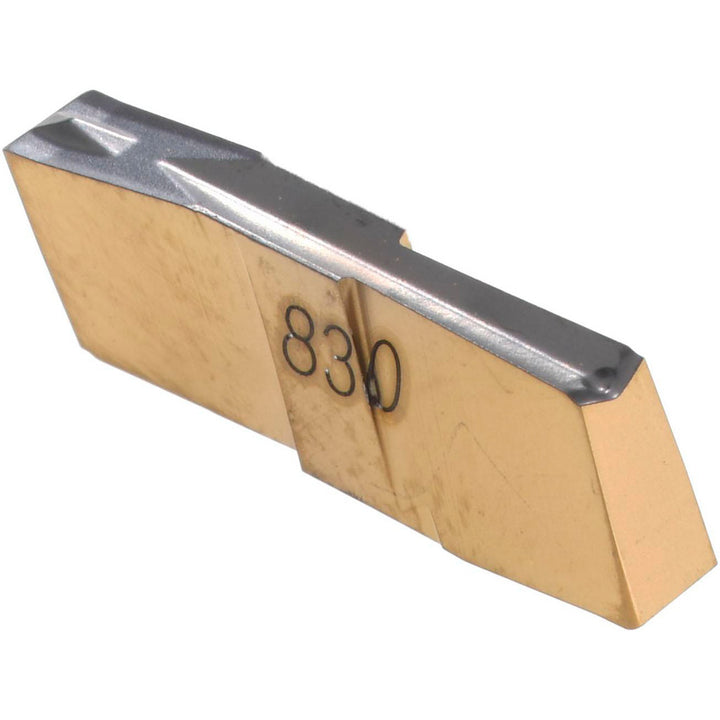

ISO 13399 Carbide Insert, Grade IC830, AlTiN - Iscar 6405002
MFR# 6405002ISO/ANSI# ISO 13399Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6405002 is a ISO 13399 carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloys, titanium.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size300020
Insert size code300020
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Msc manufacturer numberGIP 3.00-0.20
Multi use toolNo
Overall length0.6024
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
