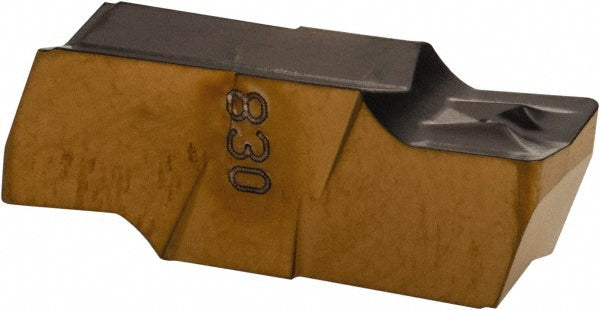

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405004
MFR# 6405004ISO/ANSI# ISO 13399Series Cut Grip
$43.18List $55.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405004 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerE
Coating finishAlTiN
Coating processPVD
Corner radius0.0197
Cutting width0.1970
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size500050
Insert size code500E050
Insert styleGIFI
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberGIFI 5.00E-0.50
Multi use toolYes
Overall length0.6180
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
