Iscar

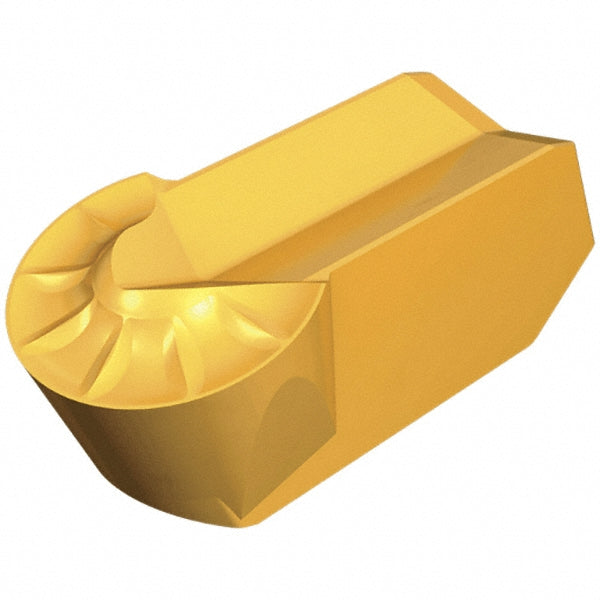

ISO 13399 Carbide Insert, Grade IC830, AlTiN - Iscar 6405007
MFR# 6405007ISO/ANSI# ISO 13399Series Cut Grip
$18.59List $23.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6405007 is a ISO 13399 carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloys, titanium.
Specifications
Chip breakerFY
Coating finishAlTiN
Coating processPVD
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size420
Insert size code420
Insert styleGIMY
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolYes
Overall length0.6024
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
