Iscar

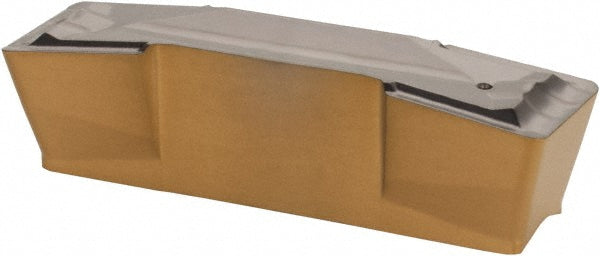

ISO 13399 Carbide Insert, Grade IC830, AlTiN - Iscar 6405014
MFR# 6405014ISO/ANSI# ISO 13399Series Cut Grip
$43.65List $55.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6405014 is a ISO 13399 carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloys, titanium.
Specifications
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.3150in
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size808
Insert size code808
Insert styleGDMN
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1260
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGDMN 808
Multi use toolYes
Overall length1.1811in
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7.00
StandardsISO 13399
