ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405038
MFR# 6405038ISO/ANSI# ISO 13399Series Cut Grip
$38.50List $49.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description

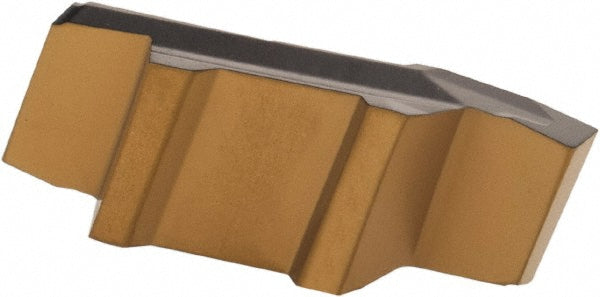

The Iscar 6405038 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerX
Coating finishAlTiN
Coating processPVD
Corner radius0.0059
Cutting width0.0618
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size157015
Insert size code157015
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1063
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIP 1.57-0.15RX
Multi use toolNo
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
