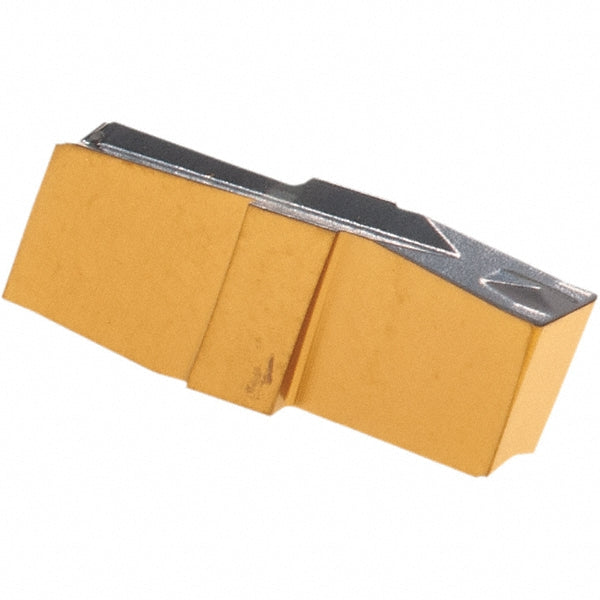

GIP 2.47-0.20 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405060
MFR# 6405060ISO/ANSI# GIP 2.47-0.20Cat# GIP 2.47-0.20Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405060 is a GIP 2.47-0.20 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1970
Cutting width0.0970
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size247020
Insert size code247020
Insert styleGIP
Iso codeGIP 2.47-0.20
Manufacturers catalog numberGIP 2.47-0.20
Manufacturer gradeIC830
Maximum depth of cut0.1970
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.6020
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
