Iscar

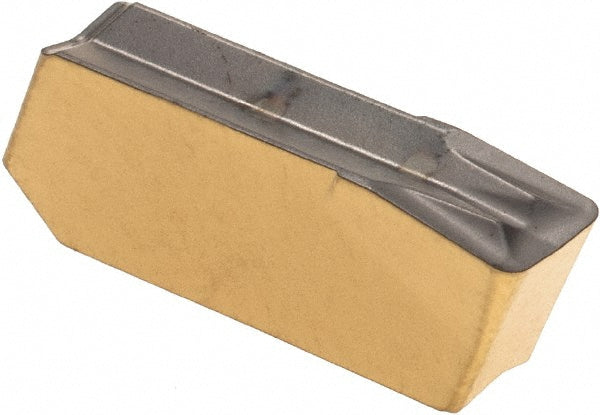

Solid Carbide Insert, Grade IC830, TiAlN - Iscar 6405068
MFR# 6405068Series Cut Grip
$17.73List $22.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405068 is a solid carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size406
Insert styleGIMF
Manufacturer gradeIC830
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.5940
Single or double endSingle
